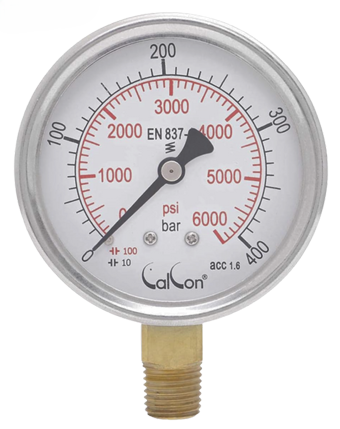

Pressure Gauge Bourdon Tube Type 63mm

SS Case Brass Pressure Gauge CC-4 Bourdon Tube Type

Nominal Size: 63mm

Dry or liquid filled
Standard followed in general EN 837-1

Accuracy class : 1.6 (63, 80mm), 1.0 (100, 150mm)
Ambient temperature : – 20°C to +65°C
Process temperature : Max. 120°C
Operating pressure range : 75% of scale value
Over pressure limit : < 100 bar : 125% of Max. scale value > 100 to <600 bar : 115% of Max. scale value
Case & Bezel : AISI 304 SS (Crimped Bezel)
Bourdon : Copper alloy up to 70 kg/cm  AISI 316L SS for 100 kg/cm’& above
Socket : Copper alloy
Movement : Copper alloy
Joints : Alloy brazing / soldering
Protection : IP 65
Dial : Aluminium, black graduation on white background
Pointer : Aluminium, black coloured fixed
Window :  Plexi glass
Filling plug : Neoprene
Gasket : Neoprene
Blow off disc : Neoprene
